The basic data object in TMTP is the point.

A point is a python object with these three attributes:

**x** : the x coordinate of the point

**y** : the y coordinate of the point

**name**: the name of the point

The names are very simplified, because there can be over 100 points in a complex pattern piece. Points are named using it’s pattern piece letter. The first point to be drawn on pattern piece** D** should be named ‘**da**‘.

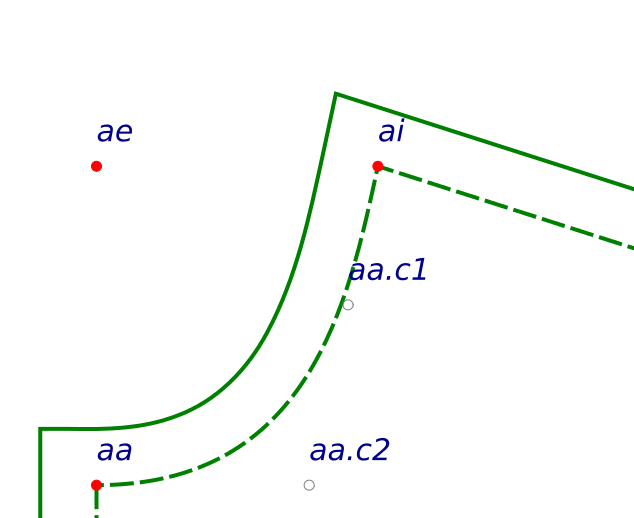

There are two types of drawn points in TMTP:

pattern points : solid red circles, created with **rPointP()** or **rPoint()** functions.

control points : gray outlined circles, created with **cPointP()** or **cPoint()** functions.

Pattern points mark normal pattern points.

Control points mark the handles of pattern curves.

Here is TMTP code to create points **da** at the origin and** db **at 3 inches right and 4 inches down from **da** on pattern piece **D**:

**da = rPoint(D, ‘da’, 0.0, 0.0)**

**db = rPoint(D, ‘db’, da.x + 3.0*IN, da.y + 4*IN)**

To calculate control points for a curve from da to db:

**db.c1 = cPointP(D, ‘db.c1’, <point at angle and length from da>)**

**db.c2 = cPointP(D, ‘db.c2’, <point at angle and length from db>)***
more on how to calculate control points in another tutorial* –

*they’re usually created at an angle from one of the two endpoints.*

**IN** converts inches to pixels, and **CM** converts centimeters to pixels. TMTP uses Inkscape’s base measurement ratio, ** 90 pixels per inch**. Look in the tmtp/standalone/tmtpl/constants.py file to see all the TMTP global variables.

*Python Programming Notes:
The numbers used with IN and CM can be integers or have decimal values. The result will be the same. When using fractions, ratios, or dividing, as in (5/8.0)*IN, the divisor *must* have a decimal or python may round down to the nearest integer.*

Some points do not need to create an SVG circle. You might need to create a point to help calculate a pattern or control point:

** temp_pnt = Pnt(db.x, da.y)
**The Pnt() function creates a python object of the Pnt

*base*

*class*. Pattern and control points are created with the Point() base class

**which has attributes and methods to enable the point to be drawn to the SVG canvas, transformed, etc.**

Here’s an example of some of pattern point **da’s **attributes, on pattern piece **D, **with coordinates (15, 20):

**da.x** = 15.0

** da.y** = 20.0

**da.name** = ‘da’

**da.id** = ‘D.da’

**da.coords** = ‘15.0, 20.0’
